PolarShield® Charging Hose

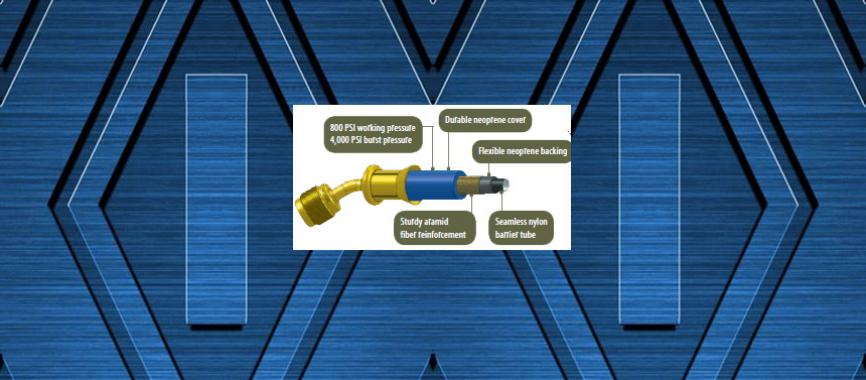

• All Imperial® PolarShield® charging hoses are UL recognized and meet UL-1963, SAE-J2196 & EPA requirements for strength, pressure and refrigerant permeation.
• Rugged, Multi-Refrigerant Nylon Barrier Construction – PolarShield hoses are compatible with all CFC, HFC & HCFC refrigerants (R-410A, R-404A, R-407C, R-134a).
• High-Pressure – PolarShield hoses feature 800 PSI working pressure and 4,000 PSI burst pressure with a 5-to-1 safety factor.
• Selection – PolarShield hoses are available with a variety of end connections, in yellow, red or blue, individually or in sets of three. Consult factory for lengths and end connections not listed below. (For Automotive R-134a hoses, see page 39.)
The 950 Series PolarShield® multi-refrigerant charging & evacuation hoses feature low loss ball valve shut-off and durable hi-pressure barrier construction.
Features:
• UL recognized
• 800 PSI working pressure, 4,000 PSI burst pressure
• Works with all refrigerant gases including R-410Apage 39.)
|
LENGTH |
BLUE |
YELLOW |
RED |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
953-MRB |
953-MRY |
953-MRR |
953-MRS |
|
5’ (60”) |
955-MRY |
955-MRR |
955-MRS |
|
|
6’ (72”) |
956-MRB |
956-MRY |
956-MRR |
956-MRS |
*5/16” fittings available-contact factory for part numbers
Precision engineered automatic low loss 1/4” FFL* shut-off valve traps refrigerant within the hose to eliminate venting and finger burn.
900 SERIES HOSES – (1/4” FFL* CONNECTIONS WITH AUTOMATIC SHUT-OFF ON ONE END)
|
LENGTH |
BLUE |
YELLOW |
RED |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
903-MRB |
903-MRR |
903-MRS |
|
|
5’ (60”) |
905-MRB |
905-MRY |
905-MRR |
905-MRS |
|
6’ (72”) |
906-MRS |
*5/16” fittings available-contact factory for part numbers
|
LENGTH |
BLUE |
YELLOW |
RED |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
853-MRB |
853-MRY |
853-MRR |
853-MRS |
|
4’ (48”) |
854-MRB |
854-MRY |
854-MRR |
854-MRS |
|
5’ (60”) |
855-MRB |
855-MRY |
855-MRR |
855-MRS |
|
6’ (72”) |
856-MRB |
856-MRY |
856-MRR |
856-MRS |
|
LENGTH |
BLUE |
YELLOW |
RED |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
803-MRB |
803-MRY |
803-MRR |
803-MRS |
|
4’ (48”) |
804-MRY |
804-MRR |
804-MRS |
|
|
5’ (60”) |
805-MRB |
805-MRY |
805-MRR |
805-MRS |
|
6’ (72”) |
806-MRB |
806-MRY |
806-MRR |
806-MRS |
|
8’ (96”) |
808-MRB |
808-MRY |
808-MRR |
808-MRS |
|
12’ (144”) |
812-MRB |
812-MRY |
812-MRR |
812-MRS |
*5/16” fittings available-contact factory for part numbers
For faster evacuation and charging
3/8” hose in four lengths for larger jobs or applications where reduced service time is desired. 3/8” swivel ends. Eight-crimp ferrules. Available in yellow.
|
LENGTH |
YELLOW |
|
3’ (36”) |
536-FTY |
|
4’ (48”) |
548-FTY |
|
5’ (60”) |
560-FTY |
|
6’ (72”) |
572-FTY |
S7958301 1/4” Hose Seal Gasket.
S7958302 3/8” Hose Seal Gasket.
S8921626 Brass Core Depressor.
S10000265 1/2” ACME & 5/16” Hose Seal Gasket.
1/4” SAE 45˚ female x 1/4” SAE male straight fittings
Connects to any 1/4” SAE charging line. Non-restrictive for maximum flow. UL recognized – environmentally safe.
|
LENGTH |
BLUE |
YELLOW |
RED |
SET OF THREE (B,Y,R) |
|
6” |
800-MBB |
800-MBY |
800-MBR |
800-MBS |
(5/16” x 5/16” hose connections)
|
LENGTH |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
203-MRS |
|
5’ (60”) |
205-MRS |
|
6’ (72”) |
206-MRS |
800 PSI Working Pressure; 4,000 PSI Burst Pressure
B, R – 1/4” x 5/16” hose connections Y – 1/4” x 1/4” hose connection
|
LENGTH |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
213-MRS |
|
4’ (48”) |
214-MRS |
|
5’ (60”) |
215-MRS |
|
6’ (72”) |
216-MRS |
800 PSI Working Pressure; 4,000 PSI Burst Pressure
|
LENGTH |
SET OF THREE (B,Y,R) |
|
3’ (36”) |
603-MRS |
|
5’ (60”) |
605-MRS |
|
6’ (72”) |
606-MRS |
|
12’ (144”) |
612-MRS |
600 PSI Working Pressure; 4,000 PSI Burst Pressure

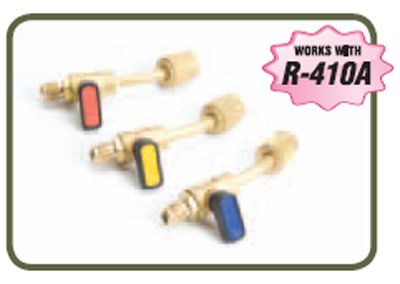

The Imperial-Thermal Engineering conversion adapter consists of a compact ball valve that is ideal for retrofitting standard refrigerant hoses, providing instant refrigerant shut off capabilities. Available in standard 1/4” and 5/16” sizes for R-410A.
|
PART NO. |
DESCRIPTION |
|
TE-BVO1R |
1⁄4 SAE x 1/4 F SAE |
|
TE-BV01Y |
1⁄4 SAE x 1/4 F SAE |
|
TE-BV01B |
1⁄4 SAE x 1/4 F SAE |
|
TE-BV01-3 |
1⁄4 SAE x 1/4 F SAE, set of 3 |
|
TE-BV02R |
1⁄4 SAE x 5/16 F SAE |
|
TE-BV02Y |
1⁄4 SAE x 1/4 F SAE |
|
TE-BV02B |
1⁄4 SAE x 5/16 F SAE |
|
TE-BV02-3 |
1⁄4 SAE x 5/16 F SAE, set of 3 |
